Workers

A worker is a second machine that takes on part of a server's processing. The main server (the master) keeps the UI, the settings and the recordings; workers contribute compute. Manage them in Workers (in the menu).

Typical reasons for a worker:

• Busy cameras. Decoding and detection for selected cameras move to the worker, freeing the master's CPU and GPU for the rest.
• Hardware the master lacks. An entire plugin can run on a worker, for example a detection backend that needs a GPU the master doesn't have, or a plugin the master's platform can't load.
• Growing setups. When you add cameras, add a worker instead of replacing the server.

How workers work

A worker is a regular camera.ui installation started in worker mode. It has no UI of its own, holds no cameras and stores no recordings; it connects to the master and waits for work.

• The worker connects outward. Pairing goes to the master's HTTPS port, the running connection to the master's worker port (default 7422). Only the master has to be reachable; nothing needs to be opened on the worker machine.
• Paired once, then on its own. A one-time pairing code is exchanged for the worker's own credentials. Nothing is shared between workers, each one can be revoked independently, and after the first start the worker reconnects by itself.
• Assignments follow the worker. Cameras and plugins you assign run on the worker, fall back to the master while it's offline, and move back when it returns (see Failover).

Master and worker don't need the same installation type, any mix works: a Docker server with an old laptop running the desktop app as its worker, a desktop-app server with a Docker worker on a mini PC, a bare-metal Linux server with both. The camera.ui version should match across machines; the workers list warns when it doesn't.

Enable workers

Turn on Enable Workers on the master and set a Master Address, the LAN IP or hostname other machines use to reach this server. Workers can't be enabled without an address. A Worker Connection Port (default 7422) is also required; changing it later means already-paired workers must be re-paired.

Pair a worker

Click Generate Pairing Code to create a one-time code (valid for 15 minutes). Along with it you get a ready-made configuration snippet:

worker:
  master: <master address>
  apiPort: <api port>
  pairingCode: <code>
  name: my-worker
  capabilities:
    - frameDecoding
    - pluginHost

The code can only be used once, and only for the first start: the worker exchanges it for its own credentials and reconnects by itself afterwards. How the snippet reaches the worker depends on the installation, see the next sections.

Set up the worker machine

Worker in Docker

A worker runs from the same image as the server, just started in worker mode. Save this as docker-compose.worker.yml on the second machine, with your master's address and the pairing code from above:

name: cameraui-worker

services:
  cameraui-worker:
    image: ghcr.io/cameraui/camera.ui:latest
    container_name: cameraui-worker
    restart: unless-stopped
    network_mode: host
    environment:
      - TZ=Europe/Berlin
      - CAMERA_UI_WORKER=true
      - CAMERA_UI_WORKER_MASTER=192.168.1.10
      - CAMERA_UI_WORKER_PAIRING_CODE=XXXX-XXXX
      - CAMERA_UI_WORKER_NAME=worker-1
    volumes:
      - cameraui-worker-data:/data

volumes:
  cameraui-worker-data:

Then start it:

docker compose -f docker-compose.worker.yml up -d

The master address takes a hostname or IP, without a scheme. CAMERA_UI_WORKER_API_PORT is only needed if the master's HTTPS port differs from the default. To pass hardware through for decoding, use the same override files as the main deployment, see Hardware acceleration.

Worker with the desktop app

An old laptop or a mini PC with the desktop app installed can join as a worker too. Choose Worker in the mode picker on first start (or later via Switch mode… in the tray menu), enter the master's address and the pairing code, and connect. Instead of the normal interface the app shows a small status window with the connection state. If the address is wrong or the code has expired, the picker reopens and shows what failed.

Two tray options make this hands-off: Open At Login starts the app with the system, minimized to the tray, and Close to tray keeps the worker running in the background when the window is closed.^[1] The address takes a hostname or IP, with :port only when the master's HTTPS port differs from the default.

Worker on Linux (bare-metal)

Paste the snippet into the worker machine's config.yml, then start it with cameraui --worker run. To keep the machine a worker across reboots, install it as a service instead: cameraui --worker install (the flag is stored with the service, see Linux (bare-metal)).

Environment variables

You can pass the same values as environment variables instead, which is usually easier in a container. CAMERA_UI_WORKER=true starts worker mode without the --worker option, and CAMERA_UI_WORKER_MASTER, CAMERA_UI_WORKER_API_PORT, CAMERA_UI_WORKER_PAIRING_CODE, CAMERA_UI_WORKER_NAME and CAMERA_UI_WORKER_CAPABILITIES (comma-separated) cover the rest of the snippet. No config.yml is needed then, and if you set both, the environment variable wins.

Leave the capabilities unset and the worker offers everything, which is what most setups want; the master still only assigns what you give it. Set them to restrict a worker to a single job, for example only hosting plugins.

The workers list

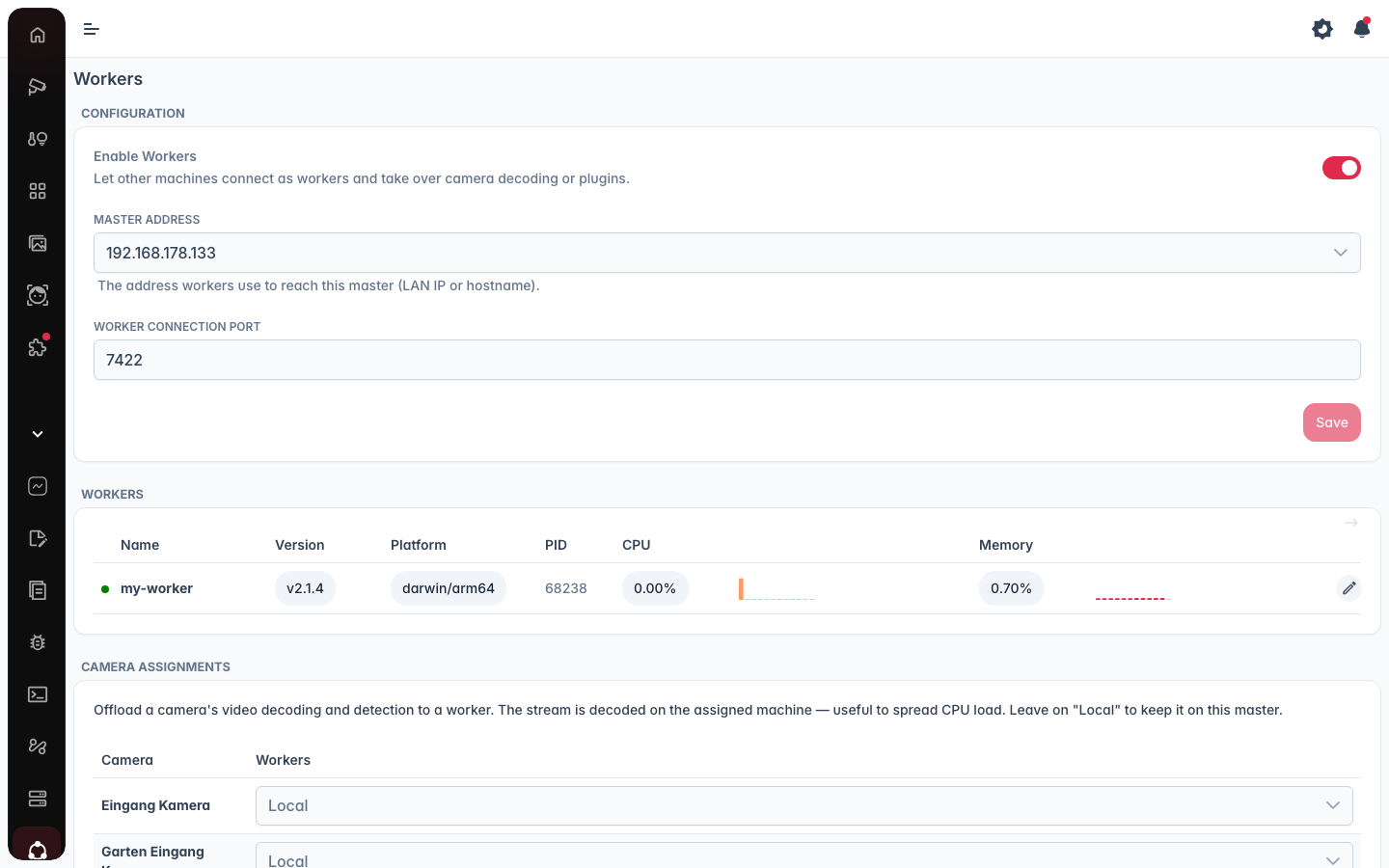

Once paired, a worker appears in the Workers list showing its online/offline status, platform (OS/architecture), process ID, version, and live CPU and memory use. A warning is shown if a worker's version differs from the master's. When a worker is behind, a small dot appears on the Updates entry in the navigation, the same marker the server and plugins use for a pending update.

The list is also where you see a worker that thinks it is connected but is not. A worker that fails to link up at startup, or loses the link later, says so in its log with the reason instead of sitting there looking online. Cameras and plugins running on a worker show up in Metrics with the worker's name and its load.

The Updates page lists every lagging worker next to the server and the plugins, and a lagging worker shows an Update button right in the list too: the worker installs the version the master is heading for and restarts itself. Normally that is the version the master runs; when a server update is waiting, it is that one, so the worker does not have to be updated twice. Workers running the desktop app update the same way, the app installs its update and relaunches. Only a worker still on a version before 2.1.0 needs a different route, it does not understand the update command yet, so bring it up once by hand: on Docker, exec into the container, run cameraui update-server -H /data and restart the container (pulling the worker image won't change the version). From then on the button covers them too. See Updating.

Camera and plugin assignments

Under Camera Assignments, choose which camera each worker decodes and detects on; cameras left as Local stay on the main server.

Under Plugin Assignments, an entire plugin can run on a worker instead of the main server, for example a detection backend that needs hardware the main server lacks. Only workers whose platform is compatible with the plugin are offered. The worker installs and runs the plugin; it's still configured normally in the UI.

Failover

Workers send a heartbeat every 5 seconds and are considered offline after 15 seconds without one. If a worker disconnects, its assigned cameras and plugins fall back to the main server automatically (a plugin only falls back if the main server's platform can run it). When the worker reconnects, its cameras and plugins are automatically re-homed to it.

Removing a worker revokes its credentials and drops the connection; its assigned cameras and plugins fall back to the main server.

---

1. Open At Login is offered on Windows and macOS. Close to tray is offered on Windows and Linux; on macOS, closing the window leaves the app running anyway. ↩︎
